ISO 12233 Digital still-camera resolution chart
The ISO Camera Resolution Chart conforms to the ISO-12233:2000 standard Photography-Electronic still picture cameras - Resolution measurements. Hyperbolic wedges for resolution evaluation range from 100 - 2000 lines per picture height. Oth
177
Introduction

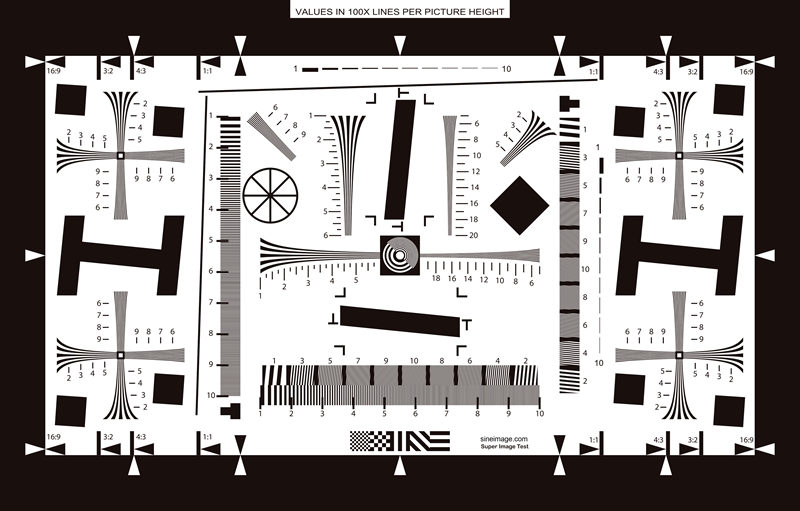

The ISO Camera Resolution Chart conforms to the ISO-12233:2000 standard, "Photography-Electronic still picture cameras - Resolution measurements". Hyperbolic wedges for resolution evaluation range from 100 - 2000 lines per picture height. Other features include checker patterns, multiple slant-edge lines, a center-focus zone plate and framing marks for 1:1, 4:3, 3:2, and 16:9 aspect ratios.


Common standard specifications


Product NO Multiple Size
NQ-10-50A 0,5X 10x17.8 cm
NQ-10-100A 1X 20x35.6 cm
NQ-10-200A 2X 40x71.1 cm
NQ-10-400A 4X 80x142.2 cm
NQ-10-800A 8X 160x284.4 cm

Paper/ink type: Semi-gloss OR Matte. Matte paper/ink can be used to reduce reflected light, but is slightly less sharp than semi-gloss paper. Semi-gloss paper/ink is recommended for most applications.

Please Note

This chart does not conform to the updated ISO 12233:2014 standard. We recommend thePhotographic ISO 12233:2014 E-SFR chart for testing that does not specifically require the old chart.
