ISO-14524 digital camera contrast chart
Details This Camera Contrast Chart conforms to International Standard ISO-14524Photography - Electronic Still Picture Cameras - Methods for Measuring Opto-Electronic Conversion Functions (OECF).Nominal patch densities are 0.1 0.2 0.31 0
80
Introduction

Details

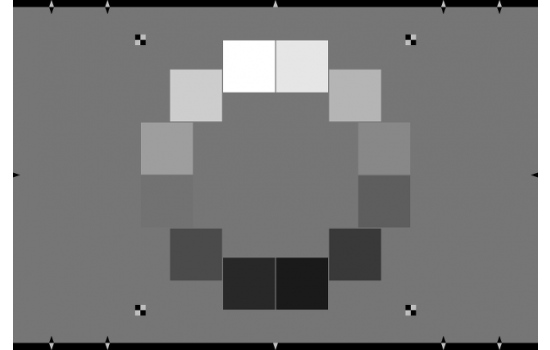

This Camera Contrast Chart conforms to International Standard ISO-14524, Photography - Electronic Still Picture Cameras - Methods for Measuring Opto-Electronic Conversion Functions (OECF). Nominal patch densities are 0.1, 0.2, 0.31, 0.43, 0.56, 0.7, 0.87, 1.05, 1.27, 1.53, 1.86, and 2.30. It is well suited for measuring noise as well as OECF (Opto Electronic Conversion Function).



Part No. Overall Size Material / Process
ISO-14524-IJ 483 mm × 304 mm Semi-gloss paper with ink jet printing
ST-52-RM 356 mm × 200 mm Reflective material with photographic printing
