ITE Grayscale Chart II(Gamma = 1)
The YE084 is designed for the evaluation of the halftone reproduction of an electronic camera. Two 11-graduated counter current gray scales are arranged on a gray background (D≈0.65) the gray scales being graduated linear. Related to the
145
Introduction

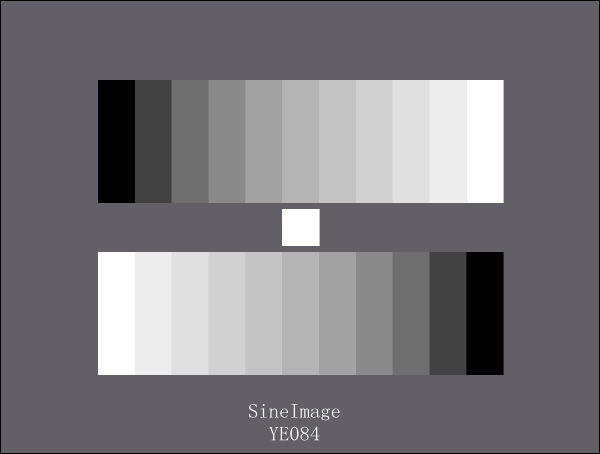

The YE084 is designed for the evaluation of the halftone reproduction of an electronic camera. Two 11-graduated counter current gray scales are arranged on a gray background (D≈0.65), the gray scales being graduated linear. Related to the densities of the gray scales: gamma = 1. The contrast range of the gray scales is 40:1.

Properties
Type selectable
Format selectable
Aspect ratio 4:3

The values of the 11-graduated gray scales are the follows:


Step Density Reflectance in %
1 0.05 89
2 0.10 80
3 0.14 72
4 0.20 63
5 0.26 54
6 0.34 45
7 0.43 37
8 0.55 28
9 0.71 19
10 0.96 11
11 1.65 2

The density of the white filed between the gray scales is D = 0.05 (reflectance = 89%).
