Color Bar Test Chart
The YE0106 is designed for checking the color rendition of TV cameras. The picture area is divided into six color bars showing the three primary colors red green and blue and the secondary colors cyan yellow and purple; in addition there
117
Introduction

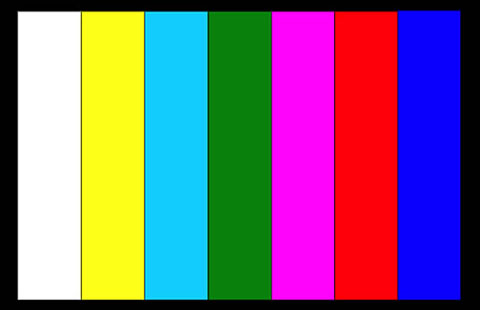

The YE0106 is designed for checking the color rendition of TV cameras. The picture area is divided into six color bars showing the three primary colors red, green and blue and the secondary colors cyan, yellow and purple; in addition there is one bar of white and black. The succession corresponds to that of an electronically generated color bar.

Color Transparent Yellow Cyan Green Magenta Red Blue
Density 0.08~1.0 1.4~2.0 0.9~1.3 1.95~2.35 1.1~1.5 1.8~3.0 0.8~1.2

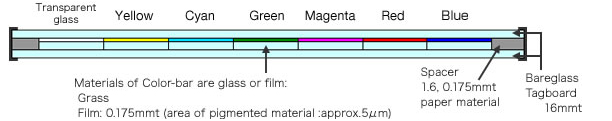

Transparent Type

  Effective Area Outer Size
4:3 245×175 320×290
16:9 272×153 310×200
