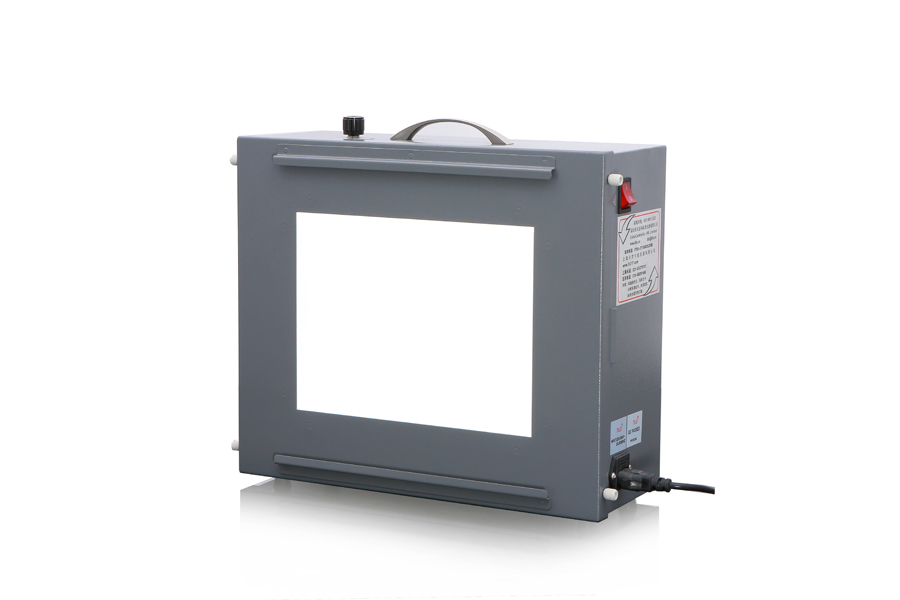

Color Viewer/Transmission light box CC5100/CC3100
3nh Standard color viewer for camera test is to provide special lighting environment with high illumination uniformity light continuous adjustable etc functions. Specification Model CC5100/CC3100 Light source: 5100K(5100K200k) *43100K(3
130
Introduction

color viewer

3nh Standard color viewer for camera test is to provide special lighting environment, with high illumination uniformity, light continuous adjustable, etc functions.


Specification

Model CC5100/CC3100
Light source: 5100K(5100K±200k) *4,3100K(3100K±200k) *4
Uniformity: >95%
Luminous Source: 100 ~ 4400cd/m2 adjustable
Illuminance: 250 ~ 10000Lux adjustable
Power supply: AC230V 50/60HZ
Lighting method: High Frequency lighting method 20KHz
Operating temperature: 10~40℃
Operating humidity: Below 80%(avoid dew)
Major diameter dimension: 38.5W*34H*15Dcm
Luminance plane dimension: 25W*19Hcm

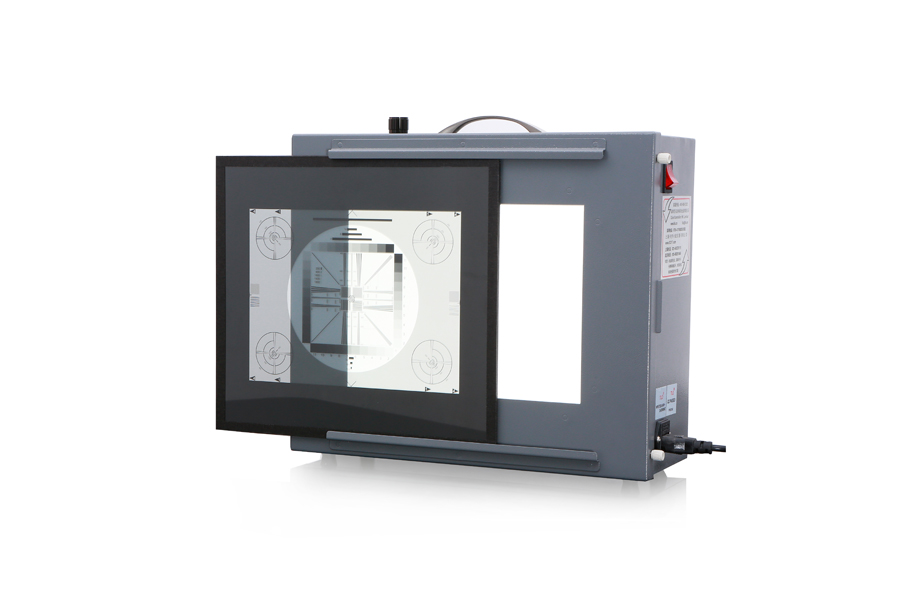

 color viewer 1

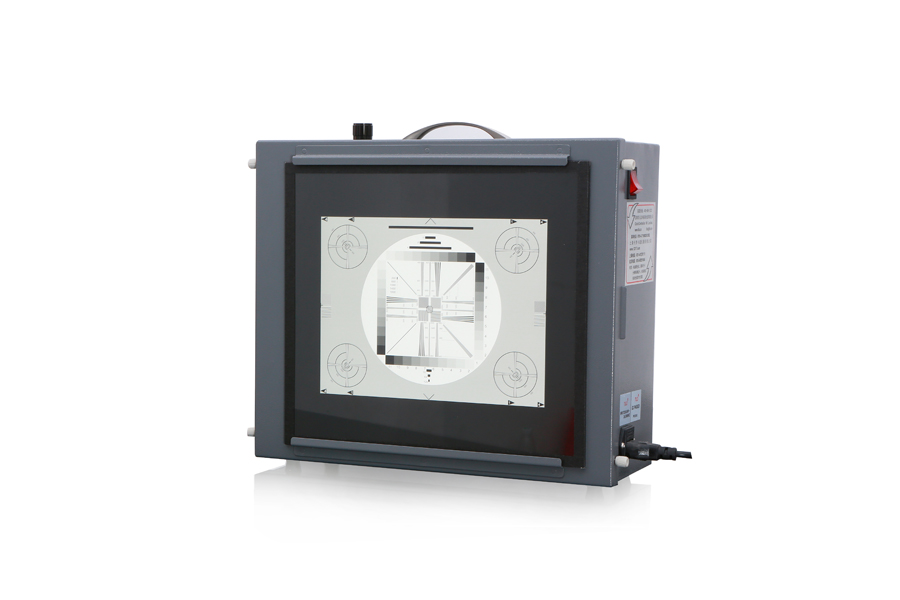

 color viewer 2

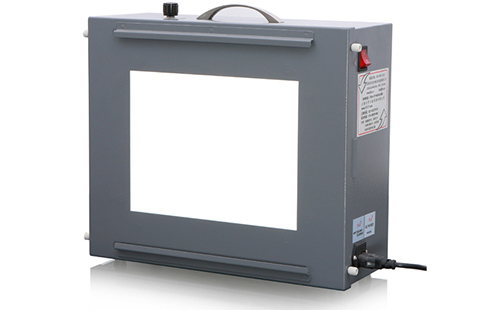

 color viewer 3
