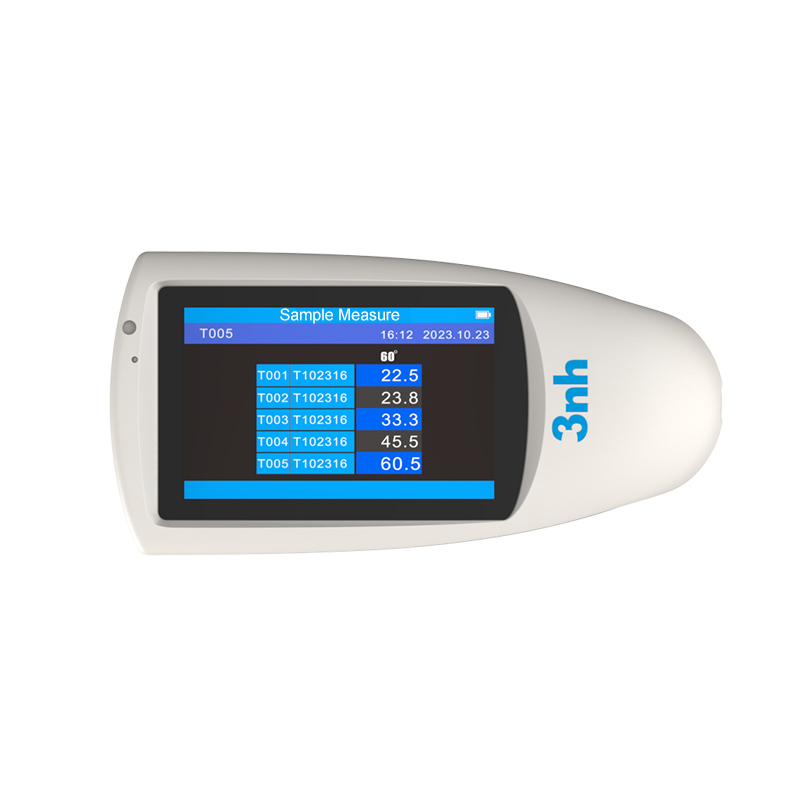

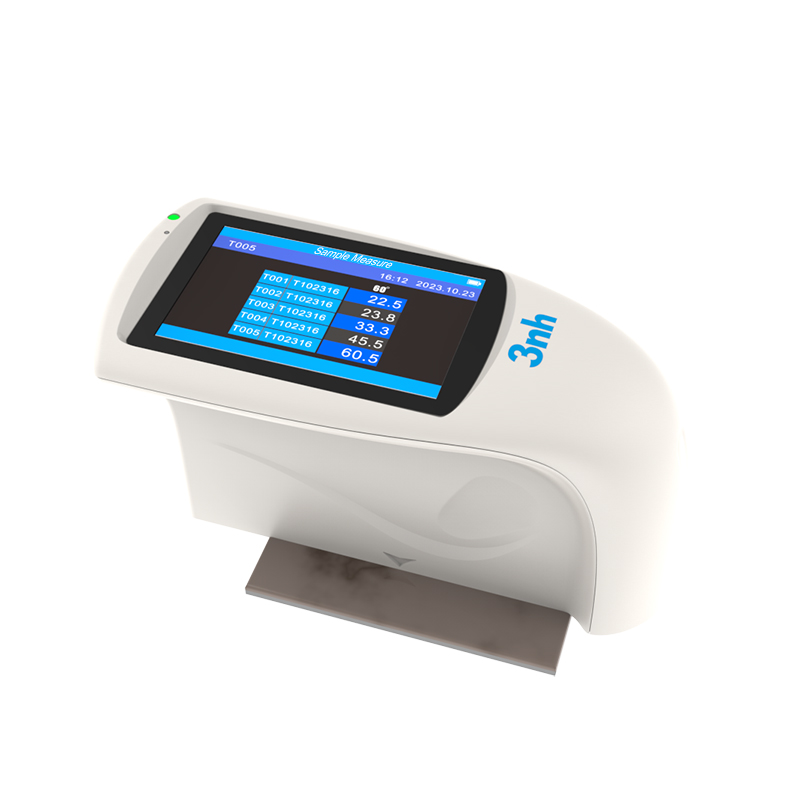

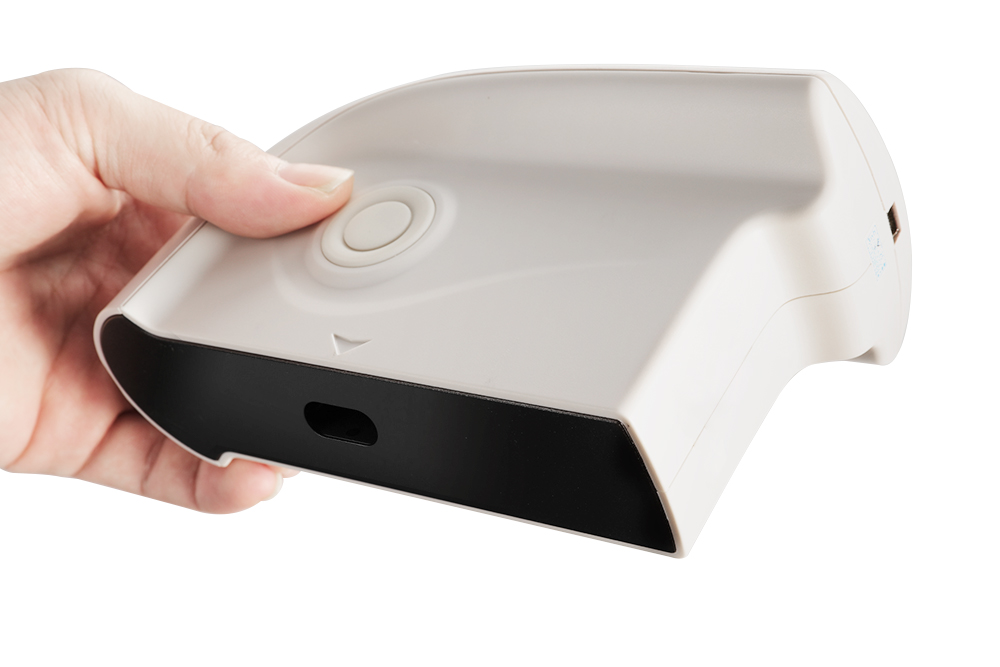

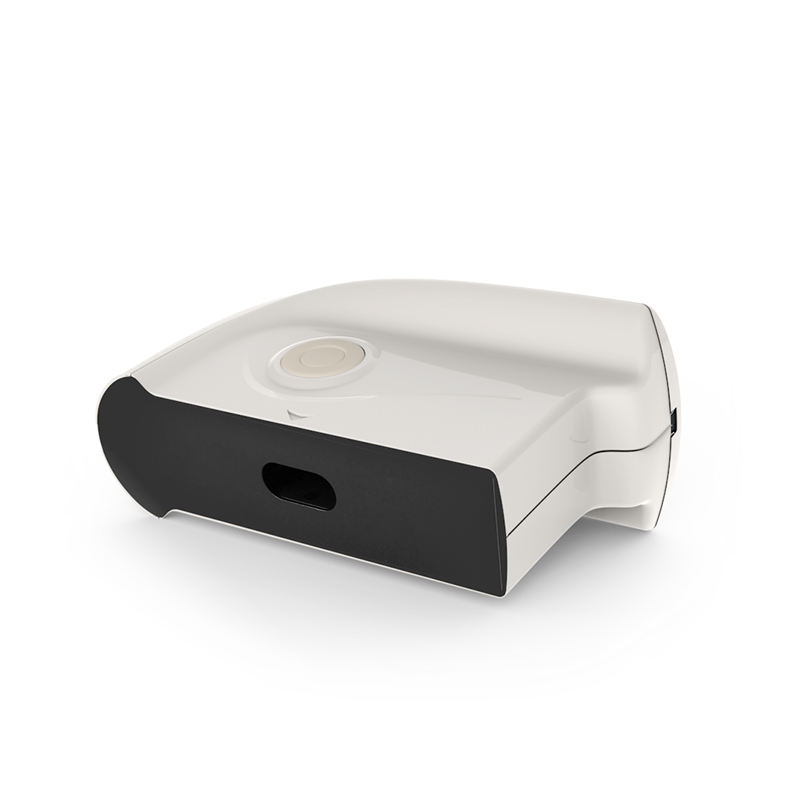

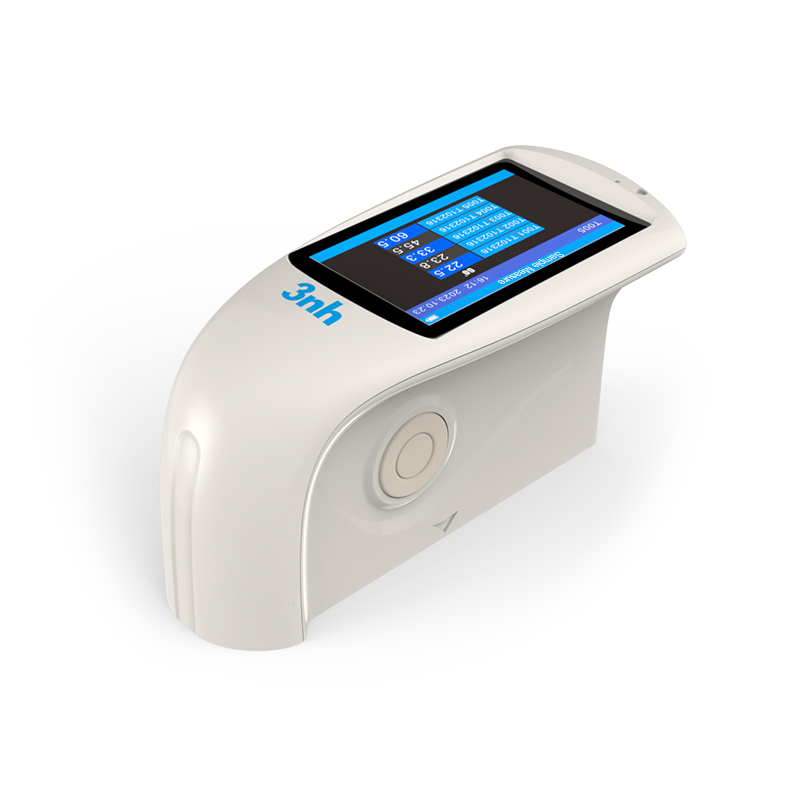

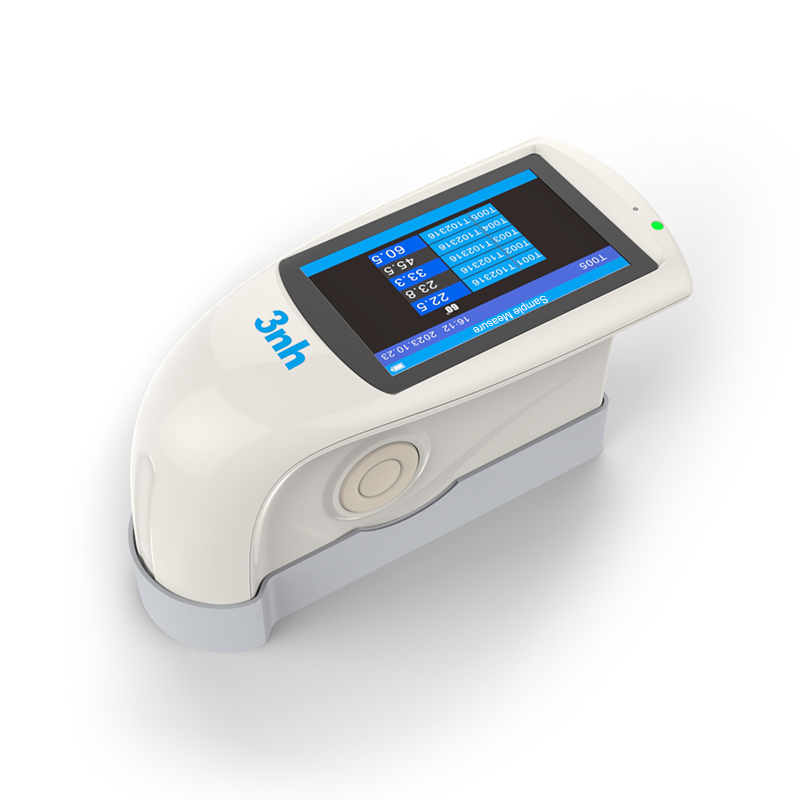

HG60S Economic Gloss Meter
HG60S gloss meter features with 60 angle manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523 ASTM D2457. HG60S gloss meter is widely used to test glossiness in these industries
57
Introduction



HG60S gloss meter features with 60° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457.



HG60S gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.



Features:



1.       60° angle for semi gloss

2.       Concise appearance, feel good

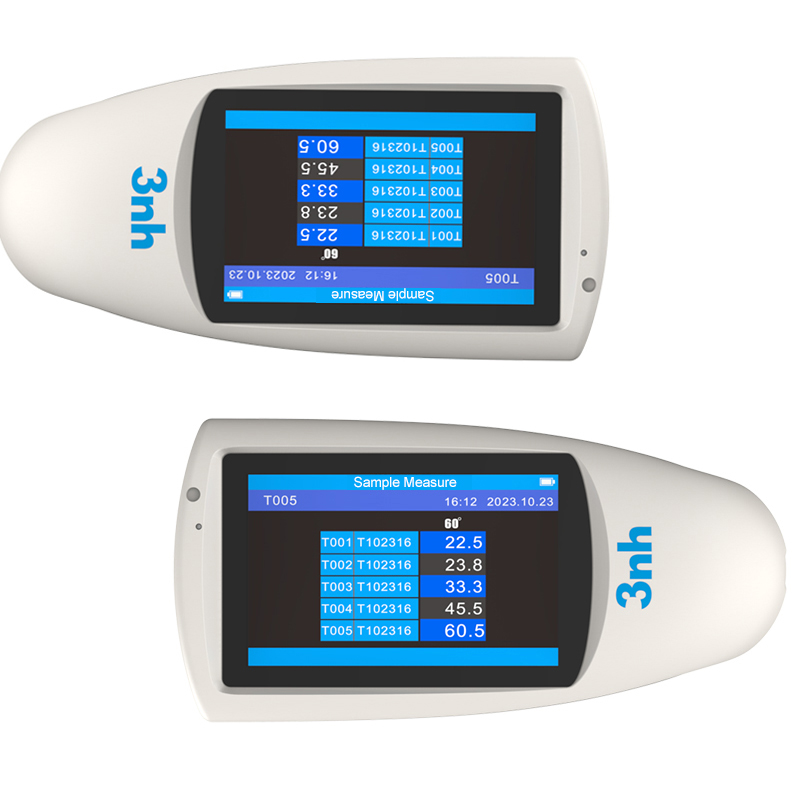

3.       Display 3 sets of measurement data, good for comparison

4.       Built-in lithium ion rechargeable battery

5.       Basic model measurement can meet basic glossiness testing requirements

6.       One button for all angles measurement at the same location

7.       Comply with international standards

8.       Stable performance, easy to read data.



Specifications:



HG60S Economic Gloss Meter




Model:

HG60S



Measuring Angle

60°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457



Measuring Area (mm)

9x15



Measuring Range

0~200GU



Division Value

1GU



Measurement Range

Repeatability

Reproducibility

0-200GU          ±1GU           ± 1GU



Measurement Standard

Confirm with JJG696 second class glossmeter working requirement



Chromaticity Corresponding

Corresponding with CIE 1931(2°) under CIE C light source



Errors

±1.5 , ± 1.5%



Measuring Time

0.5s



Dimension

L*W*H : 160mm*75mm*90mm



Weight

350g



Language

Chinese/English



Battery

3200mAh Li-ion Battery, >10000 times(within 8 hours)



Display

TFT 3.5 inch



Interface

USB/RS-232



Storage

Basic mode: 1000



Software

/



Operation Temperature

 0~40℃(32~104°F)



Storage Temperature

 -20~50℃(-4~122°F)



Humidity

<85% relative humidity,  no condensation



Standard Accessories

Power Adapter, USB cable, User Manual, Calibration Plate



Optional Accessories

Miniature Printer



Note

The specifications are subject to change without notice.
