SkypeAccording to users’ needs, various standard light sources recognized by the International Commission on Illumination (CIE) can be provided, meeting all major visual evaluation standards, including AS, ASTM, BSI, DIN, and ISO international standards, such as ISO 3664, ISO 3668, ISO 13076, ISO 23603, AATCC EP9, ASTM D1729, DIN 6173, CIE S025/E, BS 950 Pt.2, etc.

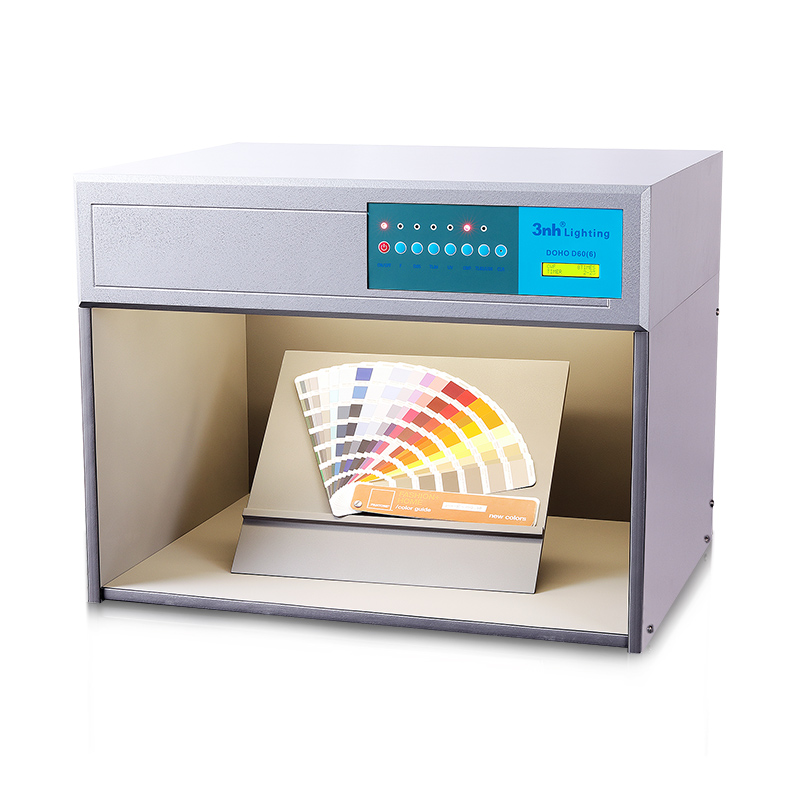

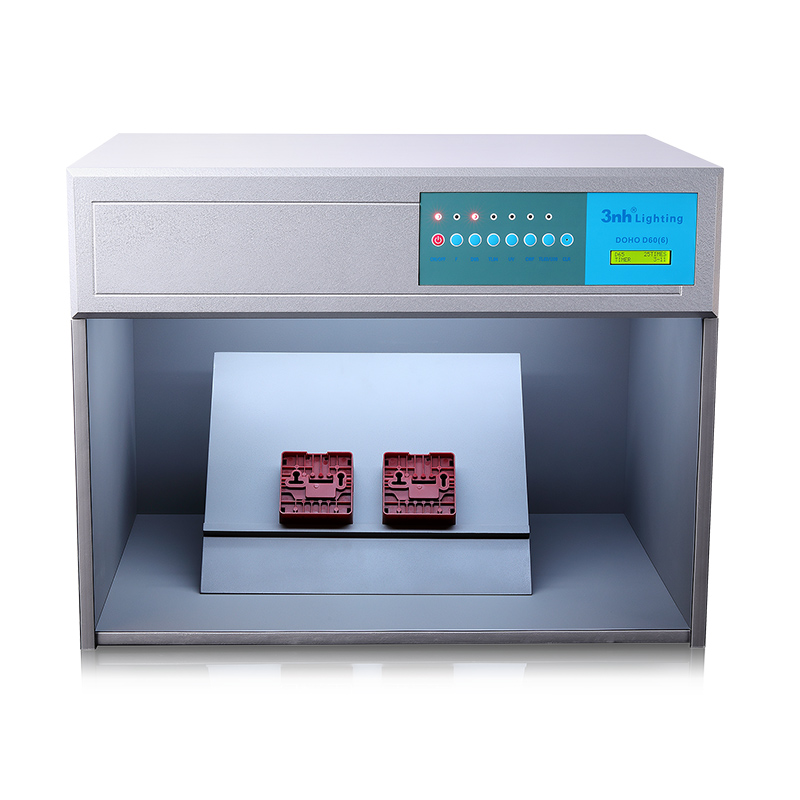

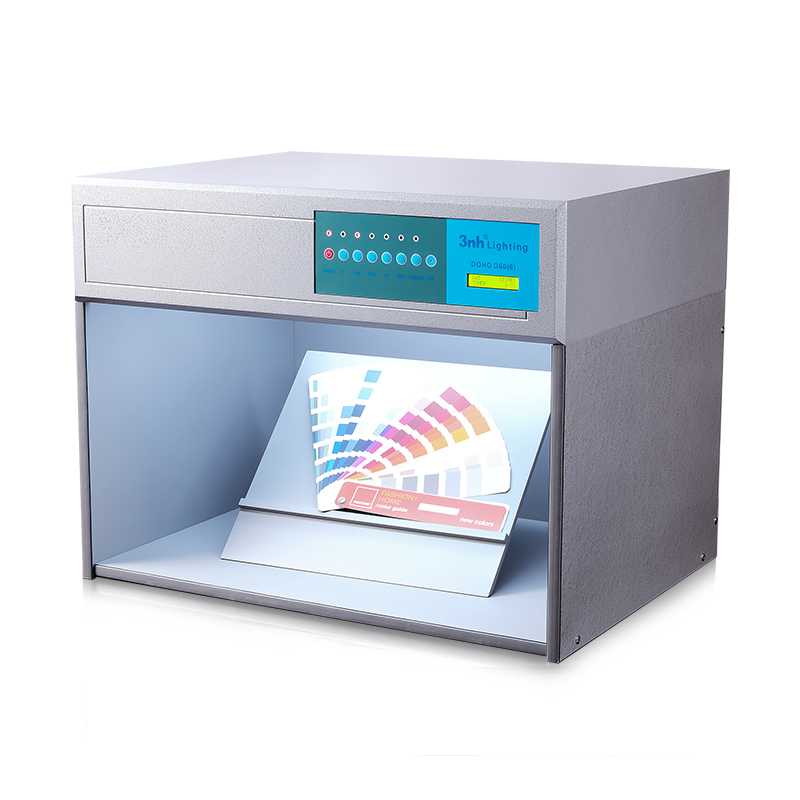

Model : D60(6) six light sources
Configuration: D65/TL84/CWF/F/UV /U30 Six light sources
Size(L*W*H): 710x530x570 mm
Item | Name | Model | D65 | TL84 | F | UV | CWF | TL83 (U30) | Power Supply |
10107 | Standard light source Color light box | D60(6) six light sources(220V) | 2pcs | 2pcs | 4pcs | 1pcs | 2pcs | 2pcs | 220V/50Hz |
10107 | Standard light source Color light box | D60(6) six light sources(110V) | 2pcs | 2pcs | 4pcs | 1pcs | 2pcs | 2pcs | 110V/60Hz |
Optional Accessory : 45 degree stand
Advantage
1. Display the usage time, name and number of switches of each light source.
2. The light source is automatically switched and has the metamerism function.
3. No preheating, no flashing, which insures fast and reliable color evaluation.
4. Low energy consumption, no heat (no need for heat dissipation), high luminous efficiency.
5. Configure a more complete standard light source for English and American standards.
6. The name of the light source can be changed, adding light is more convenient.

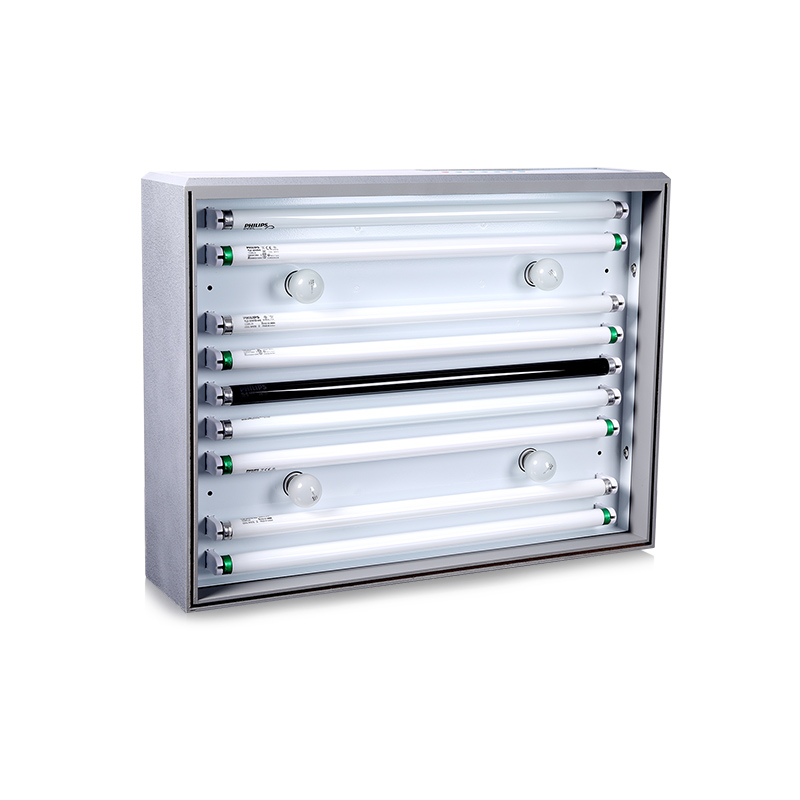

Light source
D65 International standard Artificial Daylight
Color temperature : 6500K Power : 18W
TL84 Applied to stores in Europe, Japan and China
Color temperature : 4000K Power :18W
CWF (Cool White Fluorescent) American Standard (Cool White Fluorescent)
Color temperature : 4150K Power : 18W
F "Sun-setting Light Yellow" incandescent light source(imitation of sunset)
Color temperature : 2700K Power : 40W
UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments(Ultra-Violet)
Wavelength : 365nm Power : 18W
TL83 Warm White Fluorescent European Standard (Warm White Fluorescent)
Color temperature : 3000K Power : 18W
U30 (Warm White Fluorescent) American Standard
Color temperature : 3000K Power : 20W
