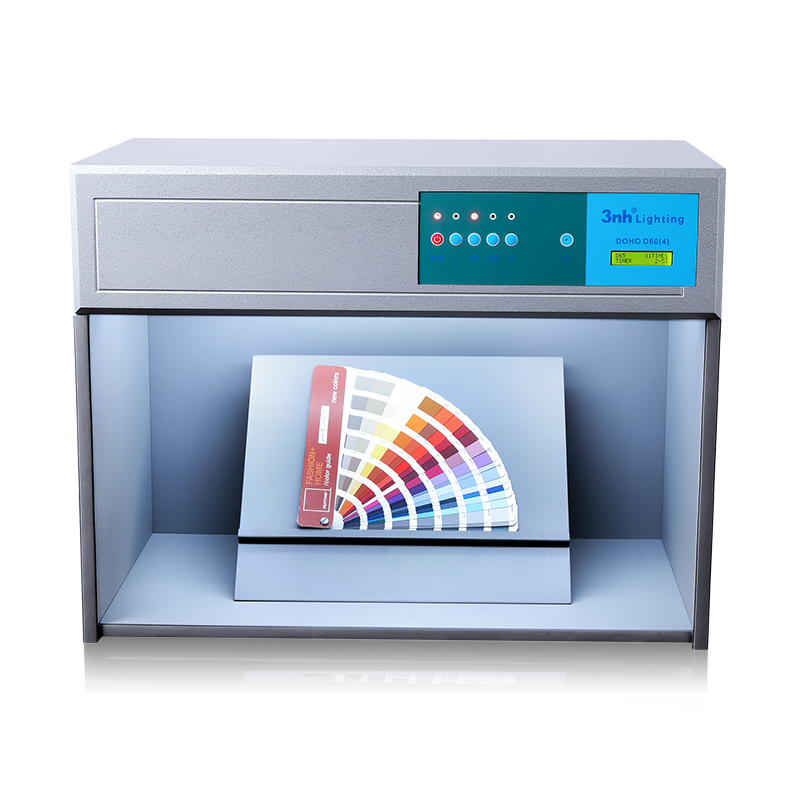

D60(4) Color Light Booth
Advantages of standard color light box: 1. D60(4) color light box will show the using time of each light source and total using time. 2. Automatically switch and with the function of metamerism. 3. Without preheating no flicker. 4. Low ene
286
Introduction



Advantages of standard color light box:



1.  D60(4) color light box will show the using time of each light source and
     total using time.

2.   Automatically switch and with the function of metamerism.

3.  Without preheating, no flicker.

4.  Low energy consumption and high luminous efficiency.

5.  Small size, easy to use and with low price.



Specifications

Item

Name

Model

D65

TL84

F

UV

Power Supply

10106

Standard light source box

D60(4)Four light source(220V)

2pcs

2pcs

4pcs

1pcs

220V/50Hz

10106

Standard light source box

D60(4)Four light source(110V)

2pcs

2pcs

4pcs

1pcs

110V/60Hz

Optional Accessory:45 degree stand



color light box parameters



Model: D60(4)Four light source

Configuration: D65/TL84/F/UV Four light sources

Weight:  28Kg

Size(L*W*H):  710x405x570 mm



Light source



D65   International standard Artificial Daylight

Color temperature:  6500K     Power:  18W

TL84   Applied to stores in Europe, Japan and China

Color temperature:  4000K    Power:  18W

F   "Sun-setting Light Yellow" incandescent light source(imitation of sunset)

Color temperature:  2700K    Power:  40W

UV   Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments

Wavelength: 365nm       Power:  40W
