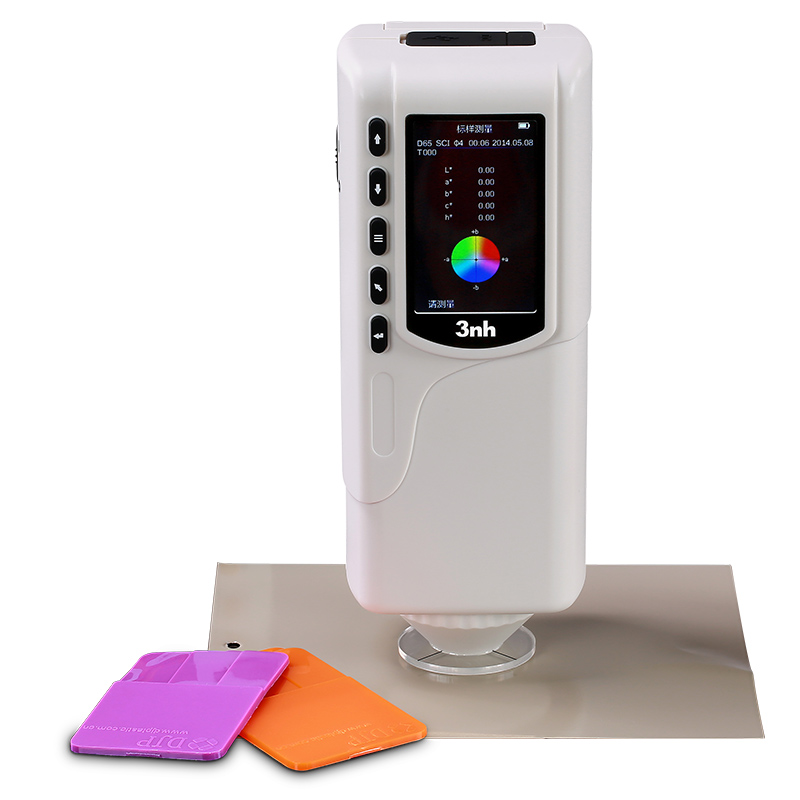

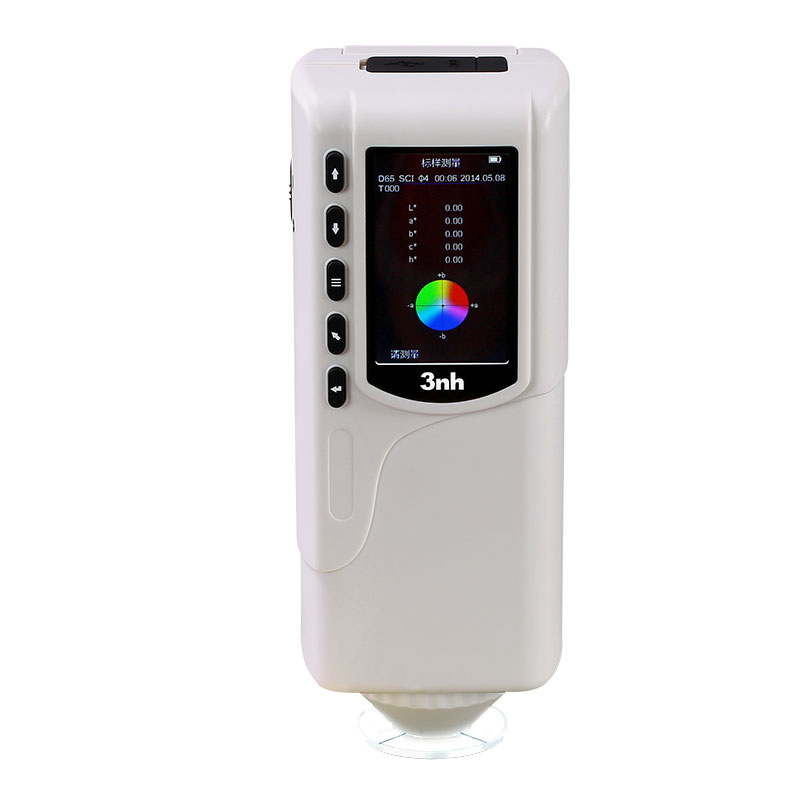

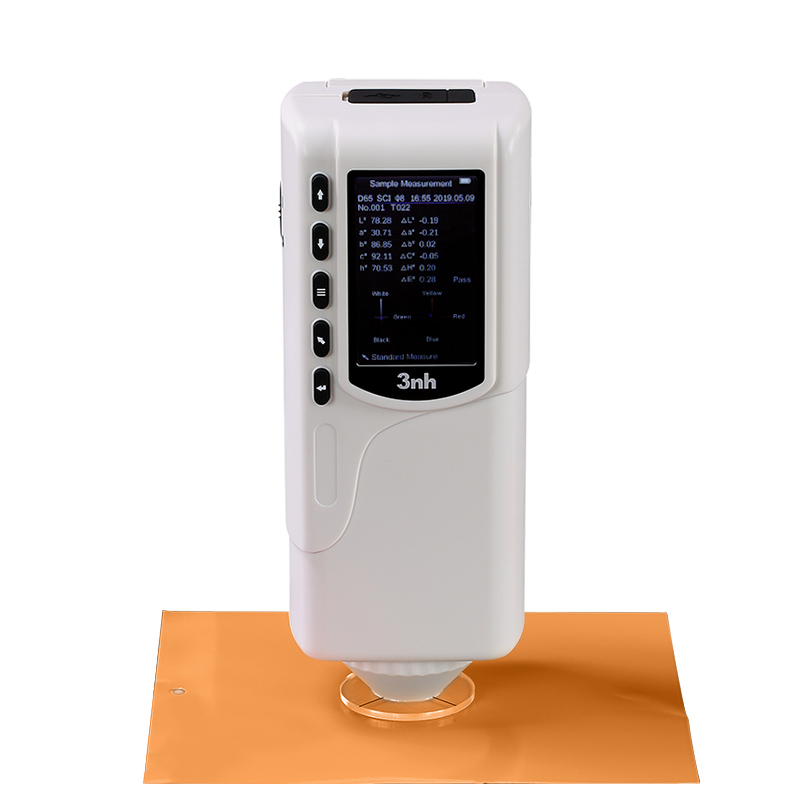

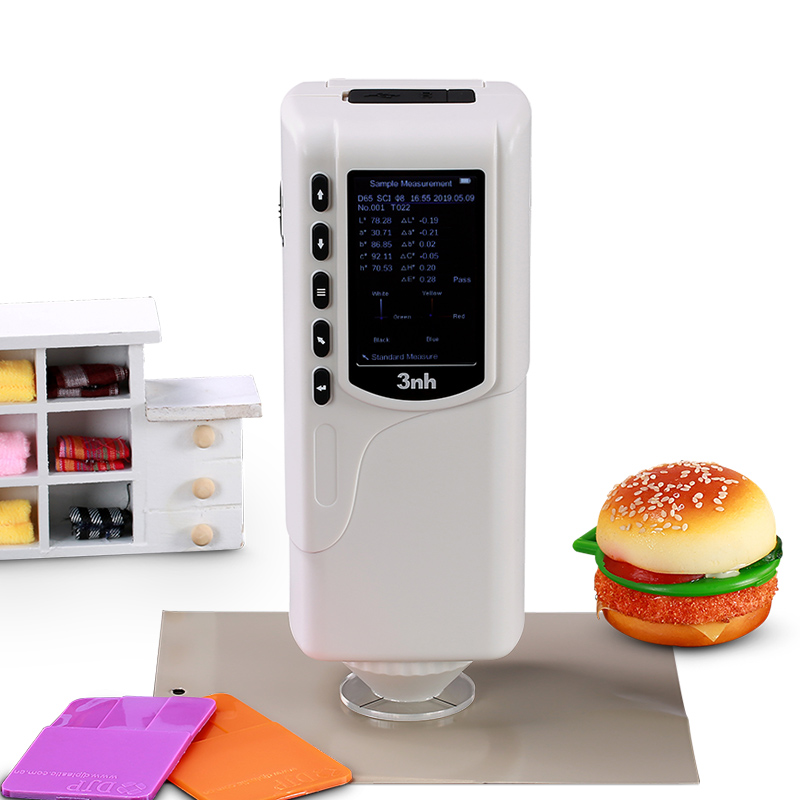

NR100 Precision Colorimeter
NR100 is a high-cost performance handheld colorimeter and easy to use. It is widely used in plastic electronic paint ink textile garment printing and dyeing food medical cosmetic industries scientific research institutes school
53
Introduction

NR100 is a high-cost performance handheld colorimeter, and easy to use. It is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.NR100 Precision Colorimeter

With two apertures, NR100 colorimeter is suitable for most samples to check color difference. 8mm flat aperture is good used to measure large plane samples while 4mm tip aperture is used to measure small objects with concave surfaces. It is easy to use, and can meet the customer's routine testing needs.

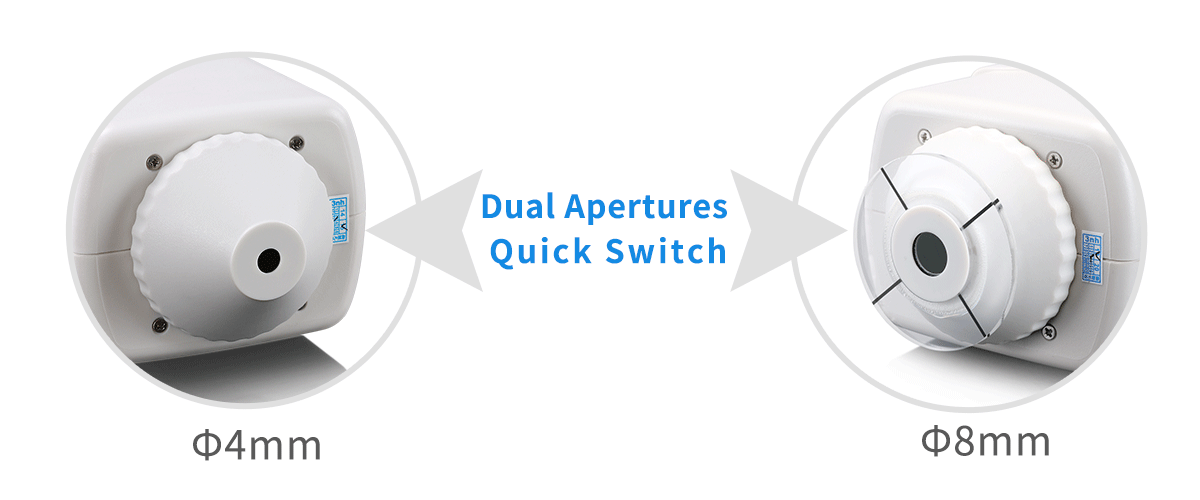

Dual Aperture Quick Switch

Product Advantages

a. Built-in white plate parameters. No need to calibrate each time which realize rapid measurement;

b. Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane;

c. High stability and accuracy, good compatibility for test data compared with geometric optical structure D/8 spectrophotometer;

d. Double locating: illuminating locating and cross locating;

e. Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly;

f. True color FTF 2.8 inch display, good human-computer interaction;

g. More than 10,000 test data storage spaces;

h. The new integral sphere design makes the measurement more stable.


 NR100 Colorimeter Technical Specifications

Model NR100
Illuminating/Viewing Geometry   8/d(8°illumination angle/diffuse viewing); Conforms to CIE No.15,GB/T 3978.
Illumination LED white light
Detector Silicon photoelectric diode
Measuring Aperture                       Φ8mm flat aperture; Φ4mm tip aperture
Color Space CIE LAB
Color Difference Formula ΔE*ab
Observer Angle CIE 10°
Light Source D65
Displayed Data Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time 1.0s
Repeatability Standard deviation within ΔE*ab 0.03 (Average of 30 measurements of standard white plate)
Errors Between Each Equipment Within ΔE*ab 4
(Average for 12 BCRA Series II color tiles)
Dimension 205×67×80 mm
Weight 500g
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life TFT  2.8 inch
Interface USB
Data Memory 100pcs standards 10000pcs samples
Operating Environment 0~40℃(32~104°F)
Storage Environment  -20~50℃(-4~122°F)
PC Software No
Standard Accessory Power Adapter, User Guide, Wristbands, Φ8mm flat aperture; Φ4mm tip aperture.
Optional Accessory Micro Printer, powder test box
Notes: The specifications are subject to change without notice.
